One. Technical parameters Country of Origin: Taiwan;
Control distance: up to 100 meters Security Code: 4300000000 kinds of factory and never repeat Hamming:> 4
Temperature: -35 degrees to +80 degrees (without regard to battery temperature)
Protection: IP65
Transmitter Power: tributary 3V (2 alkaline AA batteries)
Receiver Power Supply: AC 220V/380V selectable, or AC and DC 12V
Two. Specifications:
Function Description 10 Single-speed emergency switch button +1 +1 + a power button turn the key;
Up to 13 control points, each point up to three control methods;
With battery voltage warning device, in low voltage own circuit.
Special features internal functions by computer interface setting, for example: boot mode and key way;
Up / down, east / west, north / south can be set to flick jump, general and other functions, and whether to suppress each other;
Spare 1,2,3,4 keys can be set to boot, acceleration, flick jump, ordinary functions.
Structure: three glass fiber reinforced plastic. Standard configuration
1. A transmitter
2 receiver a
3 The receiver comes with connection cable 1 m
4 Operation and Maintenance Manual 1
5 launcher transparent protective cover 1

Four. Scope
Applicable to hook Single-speed / multi-speed driving; Double-speed electric hoist single girder crane; single hook, Single-speed dual-beam crane; controlling 13 contacts with the following industrial control remote.

F24-10S output wiring diagram

Buy Industrial remote control, choose Yancheng Rui long! Because professional, so rest assured!

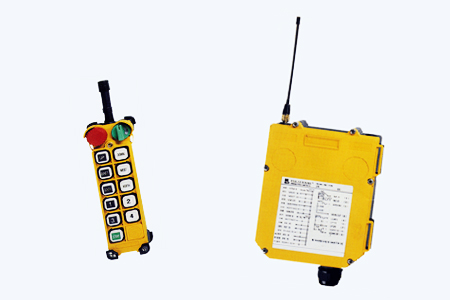

F24-10S 10 key Single-speed Industrial remote control
